IC-8300
판매가 4,400,000원
배송방식 일반배송
배송비 주문금액별 차등 (무료)
  • 구입하실 상품을 추가해주세요.
    총 상품 금액 : 상품 가격을 선택해주세요.
    장바구니 바로구매 관심상품

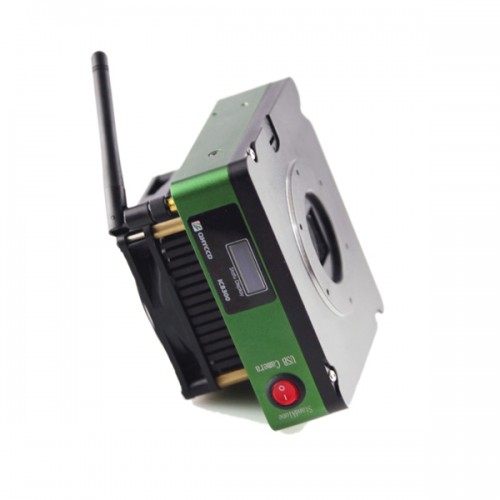

    InterCam 8300 Camera is the world first  open source standalone Astronomy Cooled Deep Sky Camera and world first Camera with fully Internet ConnectionCamera via WIFI. IC8300 is a classic mono camera using the very popular 8.6mega pixel KAF8300 CCD sensor. This sensor has a good QE for deep skyimaging. It has two stage TEC and typical delta T is -45C below ambient.Builtin heating plate and an external drying interfaces, effectively avoid condensation problems at low temperatures .

          In addition to the strong cooling effect, low thermal noise and the low readout noise, IC8300 also builtin a ARM system . you can use it without a computer . WIFI  interface allows wireless control, remote login. The camera also includes two serial ports, a USB host interface, a 4pin filter wheel interface. By appropriate software, you can access the equatorial ,electric focusing, a guiding camera. Achieve a complete imaging system.  IC8300 includes builtin LINUX operating system. QHYCCD provides LINUX version of EZCAP software, INDI drivers. IC8300 global open source developers also provides iAstroHub for IC8300 and other applications. In addition to  stand-alone  mode, IC8300 also provides a common USB camera mode, you can connect with the computer as an ordinary astronomical camer via USB cable.
          QHYCCD provides WINDOWS version of EZCAP software and ASCOM drivers.


    1. IC8300 Camera
    2. 12V6A AC adapter
    3. Cigar Lighter Cable
    4. Mini Wireless router
    5. 5 positon 36mm CFW (Not ready.Will ship when it get ready)
    6. 4PIN CFW cable (Will ship with CFW together)
    7. M42 to 2inch T ring
    8. USB disk with SDcard reader
    9. microSD card(with standard SD convertor)
    10.Quick start instruction
    11.Silicon gel tube
    12.Silicon gel
    13.Specially USB cable with Aviation socket
    14.mini HDMI to standard HDMI cable
    15.USB HUB
    16.Sepcially RS232 cable with Aviation socket
    17.Professional WaterProof Plastic Box
    18.Factory Testing Repor

    CCD Sensor
    KAF8300 Mono
    Effective Pixels
    8.6mega
    Pixel Size
    5.4um*5.4um
    FullWell
    25.5Ke-
    Imager Size
    17.96mm*13.52mm 4/3inch
    ADC
    16bit
    Readout Noise
    Typical 9e-
    Binning
    1x1,2x2,3x3,4x4
    TEC
    2 stage
    Cooling
    Typical -45, Max -50C below Ambient
    Shutter
    Butterfly Mechanical Shutter with Uniform illumination
    CCD window heater
    Yes
    Fully Airproof CCD chamber
