판매가	535,000원
QHY-CFW2-S(36mm)
배송방식	일반배송
배송비	주문금액별 차등 (무료)
구입하실 상품을 추가해주세요.
총 상품 금액 : 상품 가격을 선택해주세요.

상세정보
관련상품
사용후기(0)
상품문의(0)
배송/반품/교환

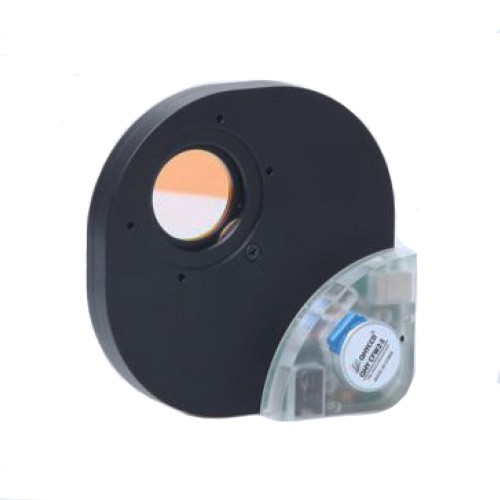

Small size. Support five 36mm umounted filter.Thickness is only 15.5mm. It also support the six 1.25inch unmounted filter with an optional disk(need special order). The weight of QHYCFW2-S is 365g.A

QHYCFW2-S is the secondary generation color filter wheel of QHYCCD. We improved the mechanical design and electric design. The QHYCFW2-S has the following advantages:

Gear driven disk. Stable and solid.
Specially designed filter disk allow different glass thickness for unmounted filters. From 0.7mm to 5mm.
Motor moved to a corner to increase the work area.
Increased the precision for filter location.
Support USB port and powered by USB when connected with computer.
Support the 4PIN QHY CFW socket on QHY11,QHY21/22/23 and InterCam series camera.
Support the 2pin socket with QHY9(Need external power supply).
Open Source Firmware, Arduino compatible

It has both M42/0.75, 2.5mm thickness screw in telescope side and camera side. On camera side it has a 1.5mm stage which is used for avoid the light leaking when connect camera. It has six M3 screw holes on telescope side which can be used to connect QHYOAG and four 3mm through holes on camera side which can be used to connect InterCam series camera.
