Mini CAM 5-S-C
판매가	1,120,000원
배송방식	일반배송
배송비	주문금액별 차등 (무료)
구입하실 상품을 추가해주세요.
총 상품 금액 : 상품 가격을 선택해주세요.

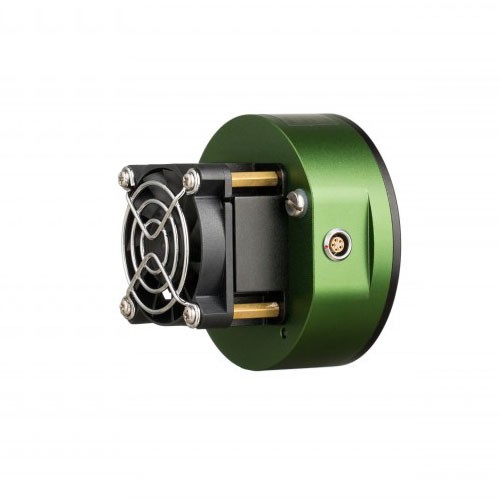

The miniCAM5S-C is intended to be a high value, multipurpose camera supporting deep space and planetary imaging.
The camera use a high QE 1.2mega pixel 1/3inch 1280*960 CMOS sensor. The mono version  has a QE of 75%  miniCAM5S-M has 30fps high speed output at the full 1280*960 resolution and 200fps at 320*240, making it a great planetary camera. It has professional two stage TEC andtemperature regular which can cool the image sensor down to -45C below ambient . These features making it an idea deep space camera.
It also has the extremely low readout noise to 2e-.The high speed, high QE ,cooling system make this camera idea for both deep space and planetary imaging along with many scientific applications.

CMOS Sensor	MT9M034
CMOS Size	Typical 1/3 inch
Effective Pixel	1280*960
Pixel Size	3.75um*3.75um
Readout Type	Progressive Scan
Shutter	Electric rolling shutter
Exposure Time	10us-1800 sec
Max Speed	1280*960  30FPS    640*480 106FPS
Pixel Binning	1*1 2*2
Peak QE	Mono>74%    Color 62%@540nm
AD convert	8bit/12bit(output)
Readout clock	48MHz/72MHz
Readout Noise	High Gain 2e-  Medium Gain 4e-  Low Gain 7e-
Full Well	18ke-
Mechanical interface	M42/1.25inch T ring /C mount
Optic glass window	Mono: AR+AR Clear glass Color: IR cut glass
Silicon gel socket	Yes
Weight(Camera only)	280g
Power Consumption	50% Cooling Power 10.7 Watt
Guider Interface	5pin aviation socket (*Note)
USB2.0 Interface	Yes

Standard parts:Drytube 、12v DC、 USB cable(1.8) 、C  TO  F Interface 、1.25 inch extend、USB TO 5 hole plug
