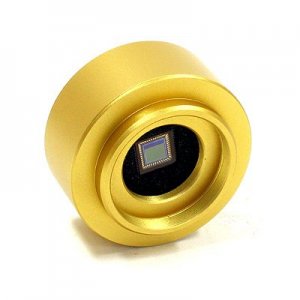

752*480 guide/plantary CMOS CAM with Build in Guide Port

Main Features
Sensor: Micron 1/3inch MT9V032
Active pixels: 752*480
Pixel Size: 6.0um x 6.0um square
Mono sensor /*C*and*C*/ Color sensor available
Whole Array Shutter
USB2.0 High Speed 24Mpixel/s
Up to max 55FPS of downloading
Uncompressed Video data
Builin in Guide Port Guide port, Optic isolated
Progressive Scan
Telescope Interface: M42/0.75
Filter interface: M28.5/0.5 for 1.25inch Filter
Size: 64mm diameter 26.5-32mm length

The highlight of this camera is its whole array shutter /*C*and*C*/ the high FPS. Unlike other cmos camera with rolling shutter.The whole pixel array is exposured at the same time. This avoid the rolling shutters disadvantage: the image distorb at high speed shutter /*C*and*C*/ when object is in high speed moving caused by atmospheric problem. The high FPS allows you to capture the plantary at the moment of clear atmospheric seeing.


Support Software:
QGVIDEO5V
ASCOM Driver

---

---

---
