AZ Mount Pro Head
판매가 1,790,000원
배송방식 일반배송
배송비 주문금액별 차등 (무료)
관심상품

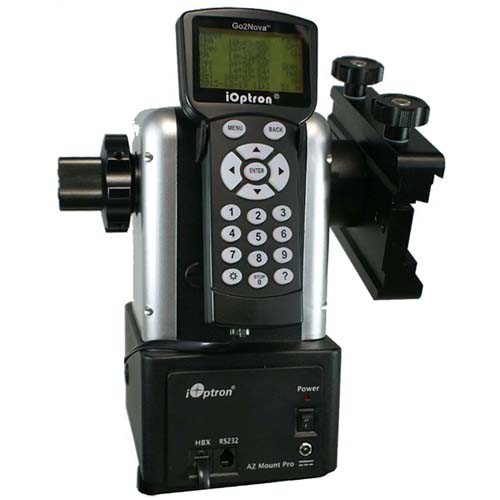

Introducing the AZ Mount Pro featuring 'level and go' intuitive GOTO setup.

We call it 'level and go', the term used to describe iOptron new AZ Mount Pro's simple set up routing. Using its built-in precision level indicator, the operator simply levels the mount and turns on the power; this capable computerized alt-azimuth telescope mount takes it from there. Utilizing the on board 32 channel GPS receiver and built-in position and angular detection sensors; the AZ mount Pro calculates its global position as well as the telescope orientation. Automatically the mount slews the instrument to an easily identifiable bright object in the night sky. The user need only confirm a bright object is in the center of the view, to activate tracking and GOTO functionality.



Features

  • On board rechargeable lithium ion battery for up to 10 hours of use
  • 33lb primary payload and 10lb secondary payload capacity, with a mount weighing only 13lbs
  • Whisper quiet low-power consumption stepper motors
  • Go2Nova® 8407 hand controller featuring 212K+ object library with an 8 line illuminated LCD screen
  • Zero backlash driver system
  • Built-in WIFI adapter for full ASCOM, iOptron CommanderTM and Sky Safari wireless control
  • Serial port for computer control and firmware upgrades
  • Retractable counter weight shaft
  • Position memorization at power interruption
  • Die-cast aluminum body

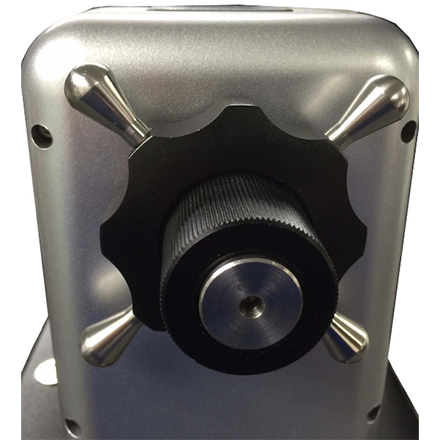

  • 3-Point easy level adjustment (need part #8340-PIER for a pier top, or #8340 for a MT tripod, not included)
  • 6 inch dual dovetail saddle (Losmandy/Vixen styles)
  • Stands a mere 10 inches tall (mount head only)
  • Built-in 32-channel GPS receiver
  • Automatic position and angular detection sensors
  • 100 ~ 240V Battery Charger included
  • Aluminum Hard Case
  • includes (8954) Alt lock levers
  • Two year limited warranty (90 day for battery)
  • Counterweight and tripod not included



MountAltAzimuth Mount
Body MaterialsDie-cast Aluminum
SystemGoToNova®
Primary Payload33 lb
Secondary Payload10 lb
Mount Weight13 lb (including CW shaft and battery)
GearAluminum worm wheel/Brass worm gear
Motor128X microstep stepper motor
TransmissionSychronous belt
Resolution0.1 arc second
TrackingAutomatic
Tracking Ratecelestial, solar, lunar and user defined
Hand controllerGo2Nova® 8407 with over 212,000 object database
Slew Speed1x, 2×,8×,16x, 64×,128x, 256×,512x and MAX(~10º/sec, 2400X)
GPS32-channel GPS
SensorsPosition and angular detection
Level indicatorYes
Dovetail Saddle6' Losmandy/Vixen dual saddle
Optional secondary Vixen saddle
BatteryBuilt-in rechargeable Li-ion battery (11.1V, 4.4AH)
Battery Running Time10 hour at 20ºC
Battery Charger100-240V AC input /12.6V DC 2000mA output (Included)
Wireless ControlYes, full control via built-in WIFI adapter
Firmware UpgradeYes, via serial port
Computer ControlYes. PC via ASCOM and Mac/Tablet/SmartPhone via WIFI
CounterweightNot induced (Optional 10lb CW #3006-10)
Tripod/Pier/Tri-PierNot included
WarrantyTwo year limited for mount
90 day limited for battery
