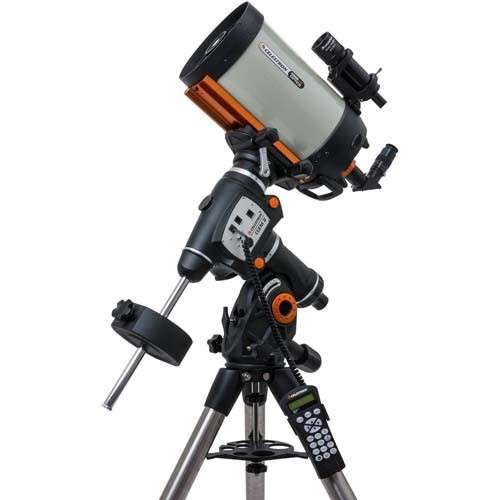

CGEM II 800 EdgeHD

배송방식	일반배송
배송비	주문금액별 차등 (0원 ~ 3,500원)

상세정보
관련상품
사용후기(0)
상품문의(0)
배송/반품/교환

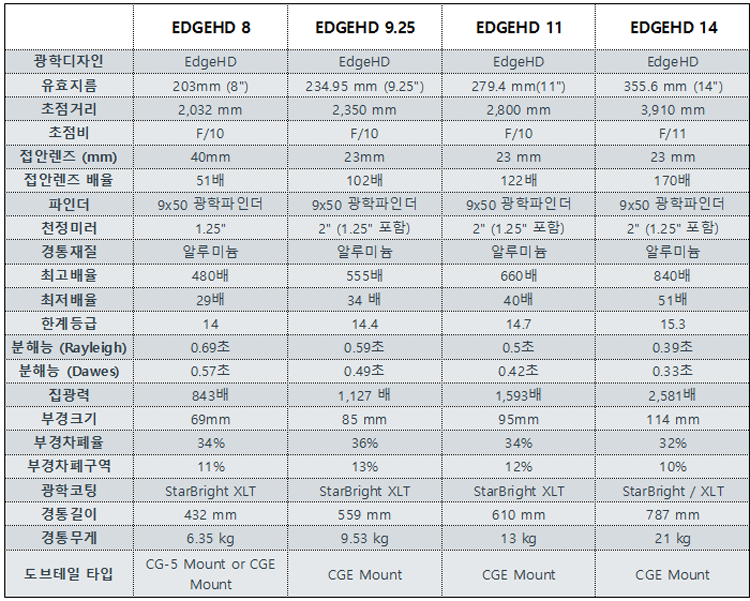

OPTICAL TUBE INFO:
Optical Design:	EdgeHD
Aperture:	203.2mm (8")
Focal Length:	2032mm (80")
Focal Ratio:	f/10
Focal Length of Eyepiece 1:	40mm (1.57")
Magnification of Eyepiece 1:	51x
Finderscope:	9x50
Star Diagonal:	1.25" Star Diagonal
Optical Tube:	Aluminum
Highest Useful Magnification:	480x
Lowest Useful Magnification:	29x
Limiting Stellar Magnitude:	14
Resolution (Rayleigh):	0.69 arc seconds
Resolution (Dawes):	0.57 arc seconds
Light Gathering Power (Compared to human eye):	843x
Secondary Mirror Obstruction:	64mm (2.5")
Secondary Mirror Obstruction by Diameter:	31%
Secondary Mirror Obstruction by Area:	9.77%
Optical Coatings:	StarBright XLT
Optical Tube Length:	432mm (17")
Optical Tube Diameter:	238mm (9.37")
Optical Tube Weight:	14 lbs (6.35 kg)
Dovetail:	CGE Dovetail Bar

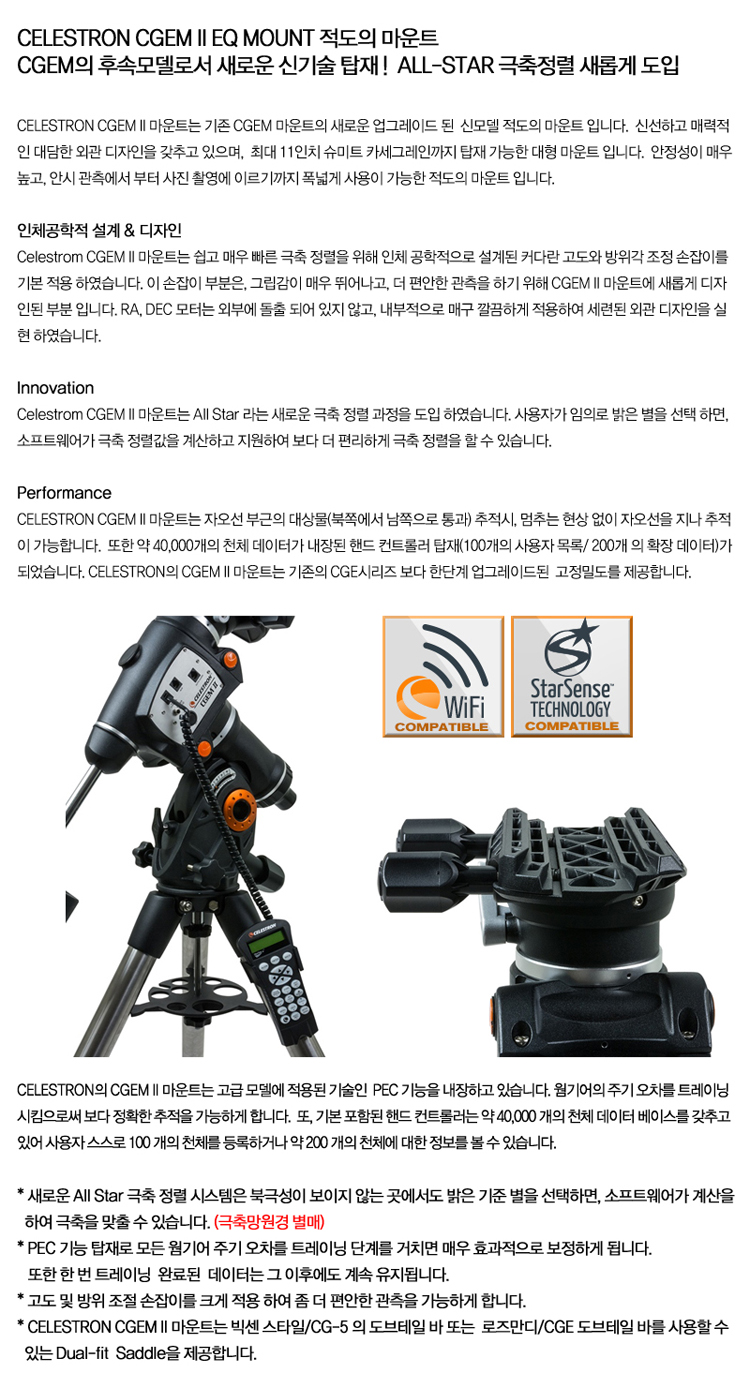

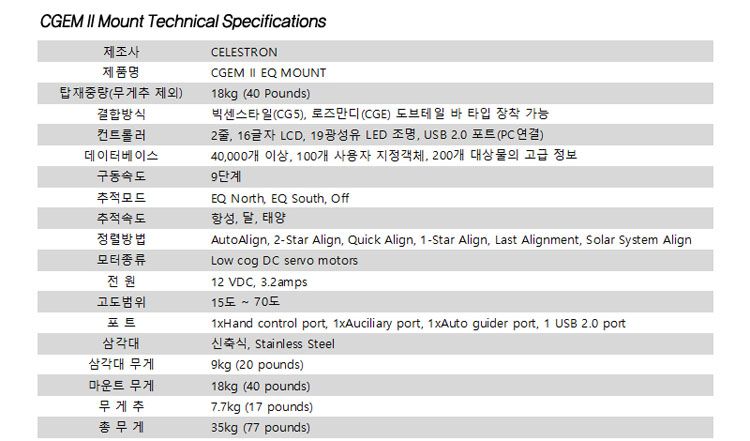

MOUNT INFO:
Mount Type:	Computerized Equatorial
Instrument load capacity:	40 lbs (18 kg)
Height adjustment range (includes mount and tripod):	1346mm - 1651mm (53" – 65")
Tripod Leg Diameter:	50.8mm (2") Steel tripod with graduated markings on lower section
Latitude adjustment range:	15° - 70°
Mount Head Weight:	40 lbs (18.14 kg)
Accessory Tray:	Yes
Tripod Weight:	20 lbs (9 kg)
Weight of Counterweights:	1 x 17 lbs
Slew Speeds:	9 slew speeds - max speed 4.5°/second
Tracking Rates:	Sidereal, Solar and Lunar
Tracking Modes:	EQ North and EQ South
GPS:	N/A
Dovetail Compatibility:	Dual saddle plates (CG-5 and CGE saddle)
Number of Auxiliary Ports:	2 AUX Ports (1x Hand control Port and 1x AUX Port for optional accessories)
Autoguide Port:	Yes
USB Port:	Yes, input on Hand Control
Power Requirements:	12V DC, 3.2 amps
Motor Drive:	DC servo motors
Alignment Procedures:	2-Star Align, 1-Star Align, Solar System Align, Last Alignment, Quick Align
Periodic Error Correction:	Yes
Computerized Hand Control:	2 line x 18 character backlit Liquid Crystal Display, 19 LED backlit buttons, USB 2.0 Port for PC connection
NexStar+ Database:	40,000+ objects, 100 user defined programmable objects Enhanced information on over 200 objects
Software:	Celestron Starry Night Special Edition Software \| SkyPortal App
Total Kit Weight:	92 lbs (41.7 kg)
Included Items:	CGEM II Equatorial Head \|Tripod \| Accessory Tray \| 1 x 17 lbs counterweight \| NexStar+ Hand Control \| DC Power Cable (item#18769) \| Hand Control Holster
Solar Warning	Never look directly at the Sun with the naked eye or with an optic (unless you have the proper solar filter). Permanent and irreversible eye damage may result. Never use your optic to project an image of the Sun onto any surface. Internal heat build-up can damage the optic and any accessories attached to it. Never leave your optic unsupervised. Make sure an adult who is familiar with the correct operating procedures is with your optic at all times, especially when children are present.
